Tokvam Hjullaster 10 Tonn Ut 490

UT490

High capacity, low power requirement, unique float solution and compact design

Request an offer today for the UT 490!

Do you have questions about UT 490? Or do you look for an offer? Fill out the form below and you will be contacted by your dealer.

Find closest dealer

Which carrying equipment do you own?



Tokvam AS forplikter seg til å beskytte og respektere ditt personvern. Les mer om behandling av personopplysninger i seksjon personvernserklaering.

Når du klikker på send, gir du tillatelse til at Tokvam AS og aktuell forhandler kan lagre og behandle dine personopplysninger for å besvare din henvendelse.

The Tokvam UT is available in four different working widths, from 400 cm to 490 cm. Tokvam's patented FlexFlow system for flow and attachment provides simplicity of use and flexible options for the user. In addition to lateral oscillation, the plough has vertical oscillation of 30 cm, providing optimum adaptation to uneven surfaces. The system has been designed to adapt to all types of carriers. All models is delivered with quick change wedge bolts for fast and easy change of wearblades. The FlexFlow system is also available for the plough plate, but only with hydraulic flow. The snow plough has a 15˚ positive attack angle in hardwearing steel. The positive attack angle ensures that the snow flows up into the plough. This combined with the shape of the blade provides top quality snow rolling capabilities when operated as a u-plough. The benefits of rolling snow as opposed to pushing snow are that rolling is less heavy work and the snow becomes more compact and thereby increases plough capacity. As a result, you achieve reduced fuel consumption and the plough does not steer the carrier. The positive attack angle of the wear resistant steel also provides optimum scraping capabilities when compared with a straight angle of attack.

The construction of the Tokvam snow plough is extremely robust with a focus on material selection to ensure high strength and a long lifetime. The design includes details such as fittings with Hardox wear steel and all bolts made from stainless, tempered steel. Moreover, all the joints on the wings are built using ball and socket bearings for extended lifetime. This range of u-ploughs has a large turning radius and has been designed with sufficient height to provide high capacity.

Specifications

Weight
1275 kg
Carriers
8-10 tons
Height
110 cm
Rotation
38
Shear angle
15
Max width
490 cm
Min width
262 cm

Extra equipment

  • Can be attached to the majority of carriers
  • Lift for plough plate
  • Hydraulic adaptation for 1, 2 or 3 double-action outlets on carrier
  • Control panel
  • Wear resistant steel in different designs
  • Skid shoes, continuous height adjustment
  • Curb deflector
Tokvam Hjullaster2017 25
Tokvam Hjullaster2017 22
Plog 39

Positive angle on cutting edge for snow rolling and high capasity

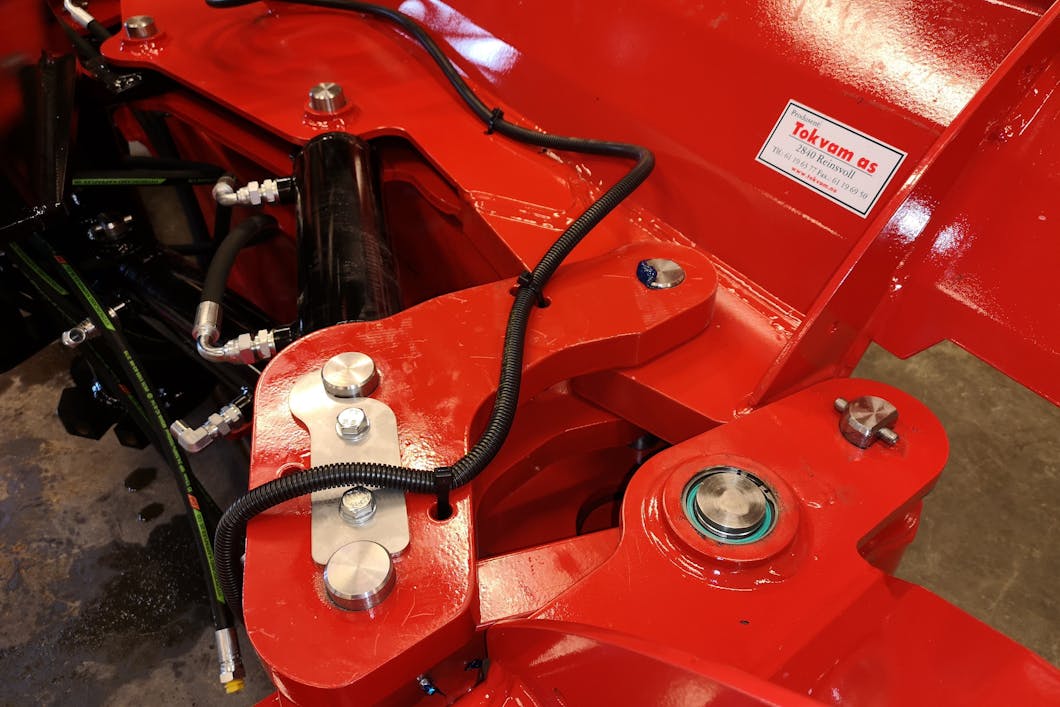

Opplagring For Lang Levetid Med Inalager Og Rustfrie Seghedede Bolter

Inabearings and stainless steel bolts for long life
